P10 Outdoor Front Service Billboard

P10 Outdoor Front Service Billboard

Dimension:(W)320mm*320mm(H) Pixel pitch:10mm Pixel Density:10000/ M2 Average power:27W Panel weight:0.84KG

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Product Parameter

Dimension

(W)320mm*320mm(H)

Pixel pitch

10mm

Pixel Density

10000/ M2

LED specification

SMD2727f

Pixel resolution

(W)32*32(H)

Average power

27W

Panel current

16.4A

Panel weight

0.84KG

Quantity of panel

9

Hub connecting

HUB75

Best viewing distance

5-100M

Panel power supply

5V40A

Max power

<800W/M2

Average power

270W

power   quantity

200W/ 2PCS

Driving device

5124 / 16207   IC

Drive type

1/2 Scanning

Refresh frequency

1920HZ/S

Brightness

7200cd/M2

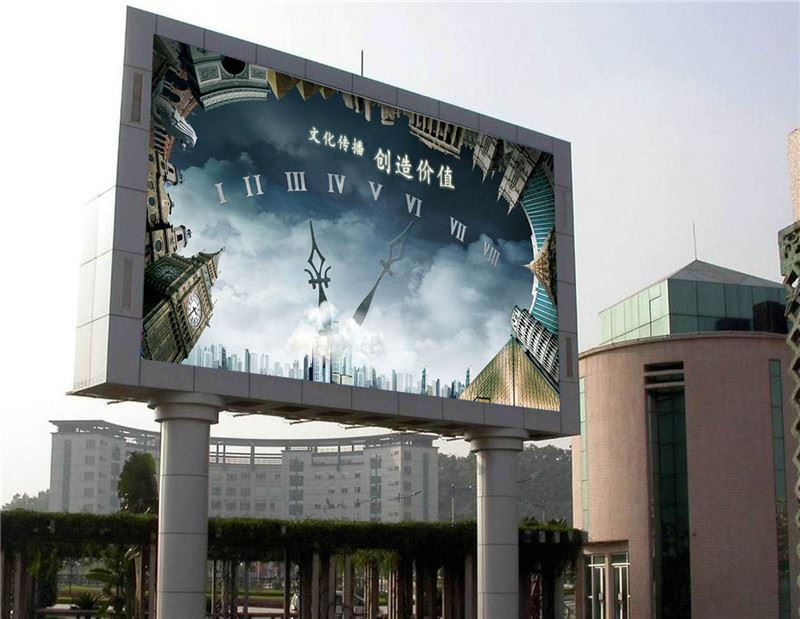

Front service P5


Production details

P10 front modules_

P10 front panel_


1.       The standard universal 320 * 320mm size display module is adopted.

2.       High quality lamp beads, after multiple high and low temperature experiments and scanning layered detection, have high cost performance and stable performance.

3.       Ultra high refresh rate: it can ensure that HD cameras and cameras can capture high-definition and delicate display images when shooting;

4.       Low brightness and high gray performance: in the case of low brightness, the gray level of display is uniform and the display consistency is good.


Production qualification

CCC


CE-EMC

CE-LVD

Advanced equipment

Booth in ISLE

_20210514173208

Advantages of front service

Front service

Front service design: Save time and effort

The magnetic suction tool is aimed at the approximate position of the magnet of the module, and the handle is rotated according to the direction indication, so that the magnet between the magnet and the module is slowly close to achieve large gravity, and the module can be easily removed by randomly pulling vertically



Centralized control and monitoring: use a set of system to realize the centralized control and monitoring of the display screen, such as the bucket screen in the center of the stadium, the ring screen of the stadium stand, the advertising screen around the stadium, the scoring and timing screen, etc
