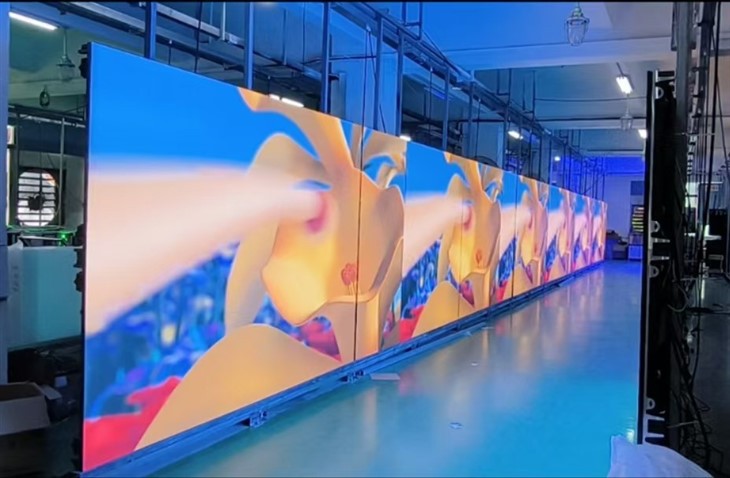

HJ1.953PRO Indoor
- Model: P1.953
- Pixel pitch: 1.953mm
- LED: SMD1515
- Pixel resolution: 128dots*128dots
- Best viewing angle: Horizontal 160°/ Vertical 160°
- Operation temperature: -20℃ to +50℃
- Operation humidity: 10% to 90%
- Cabinet size:500*500mm
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Indoor P1.953 Full Color LED Display
|
Sign, code effect product
|
HJ1.953PRO
|
|
Pixel pitch |
1.953mm |
|
Pixel Density |
262160 dots/m² |
|
Pixel configuration |
1R1G1B |
|
Size ruler cabinet
|
500x500x65 mm
|
|
Degree stool prize cabinet (WxH)
|
≥ 256x256 |
|
Matter whether
|
Cabinet aluminum cast
|
|
Block quantity cabinet
|
≤ 7 Kg
|
|
Degree bright
|
≥ 800 cd/m2
|
|
Frequency number do fresh
|
≥ 3,840 Hz |
| Ladder grey | ≥ 14-16 bit |
|
Labour rate pepper receiver pepper standard
|
≤ 200 W/m2 |
|
Labour rate pepper receiver dark Multi
|
≤ 480 W/m2 |
| Corner look |
H: 160 degrees V: 160 degrees
|
|
Pepper standard tell guard
|
IP 40 /IP21
|
|
Year old longevity
|
≥ 100,000 hours |
| Electricity pressure work | 100~240 VAC (50/60Hz) |
|
Heat degree/ degree warm active dynamic
|
-20 ~ +50 oC / 10% ~90% RH
|
|
Heat degree/ degree warm storage
|
-40 ~ +60 oC / 10% ~90% RH
|
| Ratio rate soy sauce reflect | ≥ 5,000:1 (central average); 9000:1 (peak) |
|
Heat color
|
2,700 ~ 10,000K ( maybe thing adjust) or Have wider range
|
|
Process reason color sharp
|
281 million color (with 16 bits)
|
|
Ratio rate other special light bright from heart
|
< 1%
|
|
About way look Good best
|
2~50 m
|
Product Features
1. Adopting 1.953mm ultra-small pixel pitch, it realizes ultra-high resolution indoors and presents a breathtaking high-definition image effect. With the characteristic of wide viewing angle, the color is still true and gorgeous no matter viewing from up, down, left or right, meeting the need of viewing from different angles.
2. Adopting three-in-one LED with good RGB color mixing effect, which makes the color performance more brilliant and image more realistic.
3. The LED screen occupies a small volume, light weight box, indoor high-density full-color screen, the display image is delicate and realistic. Surface-mounted packaging technology, high uniformity, good brightness and viewing angle, to achieve rapid installation and disassembly, saving your valuable time and labor costs.
- LED lamp
The 1515 matte black light packaged with high-end chips from world-renowned manufacturers fully guarantees the service life and display quality of the display.
- Driving IC
High refresh rate and high grayscale constant-current driving ICs from world-renowned top manufacturers are used for excellent driving performance, stability and reliability.
- PCB
The multi-layer circuit design is adopted to ensure uniform current distribution and good heat dissipation of the lamp board, prevent color blocking in low gray conditions, and enhance the capacity to resist electromagnetic interference.
- Connector
Use high quality 1U gold-plated connectors, no plate-wire connection inside the cabinet, stable and reliable.
- Drive and control
Dedicated 16BIT high gray scale, high refresh drive constant current IC, with a special fading circuit to protect LED and prevent glitch leakage.
Connecting Operation Diagram
