P6 Digital Outdoor LED Screen

Dimension: (W)192mm*192mm (H)
Pixel pitch: 6mm
Pixel Density: 27777/ M2
Pixel configuration: 1R1G1B

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Item	Technical parameter
Panel	Dimension	192mm*192mm (H)
	Pixel pitch	6mm
	Pixel Density	27777/ M2
	Pixel configuration	1R1G1B
	LED specification	SMD2727f
	Pixel resolution	（W）32*32（H）
	Average power	14W
	Panel current	5-5.5A
	Panel weight	0.38KG
Cabinet&Bracket	Humidity	10%-95%RH
	Number of unit boards per square meter	27PCS
	Hub connecting	HUB75
	Best viewing angle	Horizontal >170; Vertical>120
	Best viewing distance	5-60M
	Working temperature	-80
	Panel power supply	5V40A
	Screen power supply	220VAC/50HZ+_10%
	Max power	<40W/PANEL
	Average power	350W
	power quantity	200W/6PCS
Technical parameter	Driving device	16207Constant current drive
	Drive type	1/8Scanning
	Refresh frequency	1920HZ/S
	Display color	409640964096
	Brightness	5000-5500cd/M2
	Life span	100000Hours
	Communication distance	<100M
	Drive type	1/8Scanning
	Refresh frequency	1920HZ/S
	Display color	409640964096
	Brightness	5000-5500cd/M2
	Life span	100000Hours
	Communication distance	<100M
	Drive type	1/8Scanning
	Refresh frequency	1920HZ/S
	Display color	409640964096
	Brightness	5000-5500cd/M2
	Life span	100000Hours
	Communication distance	<100M

Features

1.Outdoor products use dual latch functional driver with integrated line decoder functional tube chip,which is able to blank and eliminate open cross.

2.Adopts the PCB made of all A-level KB material designed by Royal.Copper plating thickness ≥16um,better product reliability and stability.

3.Production elements including equipment,processing,solder paste,auxilliary materials should be in accordance with the same standards applied to Royal display fine pitch products.Products quality is more guaranteed.

4.Adopt Nationstar lights, the industry-wide recognized quality assurance .

5.Performance test report ;3C certification;CE,CCC

6.The attenuation coefficient can be set in a single module so that there is no color difference after maintenance and replacement

7.Module brightness uniformity＜3%;

8. Advanced bright and dark line remover function completely resolves the problem of the bright and high grayness.

Full Screen Display

14-4 (1)

High contrast-The professional LED wall uses high-quality black surface LED lights to increase the luminance and reduce the brightness when the screen is black.

The unique black mask processing technology greatly improves the contrast of the screen.

14-4 (2)

14-4 (3)

14-4 (4)

User-friendly adjustment of brightness-With the external light-sensing device,the adjustment to the environment is conducted automaticall with affecting the display effects due to the strong ambient light.

Pre-maintenance Possible

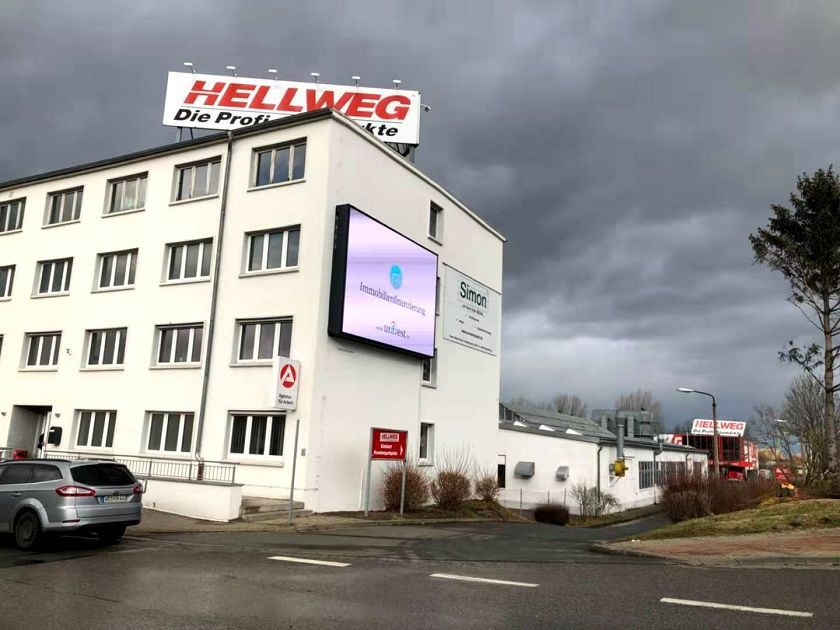

Project Display

13-02 (6)
