P2.976 LED Outdoor Rental Screen
1.The pixel pitch is 2.976mm, which has 84*84 dots. Each pixel consists of 1R1G1B.
2.With super bright LED lamps and high-quality frame.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
P2.976 outdoor LED module Panel features
1.The pixel pitch is 2.976mm, which has 84*84 dots. Each pixel consists of 1R1G1B.
2.With super bright LED lamps and high-quality frame.
2.Easy to maintain,fast detection for troubleshooting
3.Single lamp maintenance
4.Driving LED with constant current mode, uniform illumination, and low power consumption

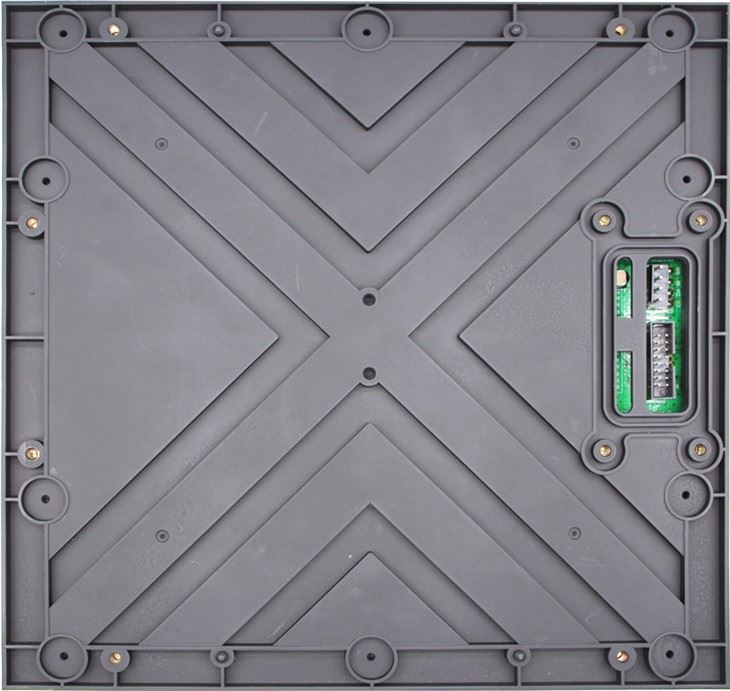

Module Features

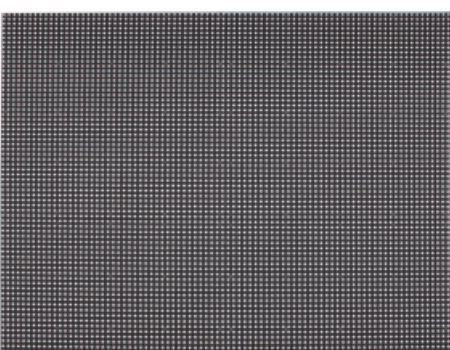

Unique mask design, RGB color, high contrast.
Unified module size 250*250mm.
Symmetrical and even, firm and flat.
The module adopts SMD1921 lamp, which has the characteristics of good heat dissipation and good weather resistance.
Constant current drive, 1/21 scanning mode.
Unit Module | Item | Parameter |
Model Number | P2.976 | |
Module size | 250mm*250mm | |
Pixel pitch | 2.976mm | |
Pixels Density | 112896dot/m2 | |
Pixel configuration | 1R1G1B | |
Package mode | SMD1921 | |
Pixel resolution | 84dots(W)*84 dots(H) | |
Max current | 6.8A | |
Average Power | 15W | |
Cabinet Weight | 13KG | |
Drive type | Constant drive | |
Scan mode | 1/21scanning | |
HUB connecting | HUB26pin | |
Brightness | 5300nits | |
Refresh frequency | ≥1920HZ |
FAQ
Q1:What is the brightness level?
A1 :The level of manual or automatic adjustment of the brightness of the whole screen between the lowest and the highest brightness.
Q2.How to ship?
A:Shipping time is about 3-7 days. We have EXW,FOB and CIF prices.And shipping cost will be quote to customer when place order.We also accept customer arrange pick up in Shenzhen China.
Q3.Do you have official bank account for the payment?
A: For policy and currency issues in different regions, we provide the following bank collection account.Plz read carefully the currencies and restrictions accepted by the account.Usually oursales staff will recommend the appropriate collection account according to the actual situation.
